The Heart and Brain SpikerBox

With our Heart and Brain SpikerBox, you can view and record the action potentials of your heart (EKG) and the slow rhythms of your brain (EEG)

Getting Started

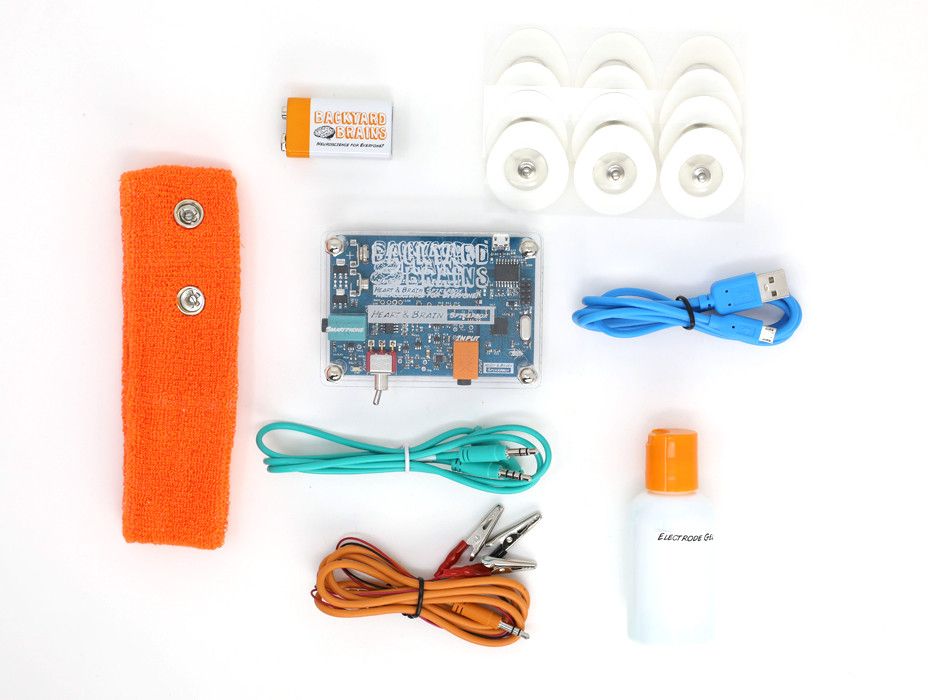

Decide which experiment you want to do and gather all the required materials for it.

Below are some basic setup steps for recording ECG and EEG, for more advanced aplications, check out our experiment pages

For the EKG experiment, it works best to place two patch electrodes on the inner wrists and one patch electrode as a ground on the back of the hand.

EKG

EKG placement

Plug in the orange electrode cable to the corresponding orange jack at the front of the box.
For EKG, the two red leads attach to the electrodes inside the wrists, and the black on the back of the hand.
For EEG, the two red leads attach to the clips on the headband, and the black ground behind the ear.

EEG

EEG placement

For EEG, place the headband with the metal electrodes on the top back of your head (over the visual cortex). The flat metal part should be making contact with your head, with a dab of electrode gel to increase contact.
Place a patch electrode on the bony part behind your ear as a ground.

Recording

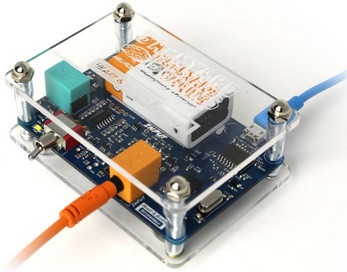

setup

Power the Heart & Brain SpikerBox on with a 9V battery, and turn on the red switch at the front of the SpikerBox.
If recording on a computer, plug the blue USB cable into the metal port on the back of the board to connect.
Open SpikeRecorder on your device.
